Input/Output units

AMEREX – 30109 Dual Analogue and 4 Digital Input.

AMEREX Integrated 30109 dual analogue and four digital inputs module is one of a range of base units that can be connected easily to other items of equipment with either 4-20mA outputs of simple switch (dry contact) inputs. It also has four independent relay outputs.

The unit is powered from a nominal 24Vdc power supply or from the 4-20mA transducer.

AMEREX – 30110 Single Analogue and 3 Digital Input

AMEREX Integrated 30110 single analogue and three digital inputs module is one of a range of base units that can be connected easily into other 4-20mA and digital input devices, such as gas detectors and temperature sensors. The unit is designed to be installed in the same enclosure as the unit it is monitoring and can also be housed in an Explosion proof enclosure. One of the digital inputs is monitored for open and short circuit making it ideal for inputs from conventional fire system devices. The unit has a single relay output and an LED output indication.

The unit is powered from a nominal 24Vdc power supply or from the 4-20mA transducer.

AMEREX – 30111 Single Analogue and 3 Digital Input encapsulated

AMEREX Integrated 30111 single analogue and three digital inputs module is one of a range of base units that can be connected easily to other device but is configured as a “stand alone” unit. In practice the 30111 is the 30110 unit housed in an encapsulated enclosure complete with an internal antenna.

AMEREX – 30112 Triple digital and one digital output

AMEREX Integrated 30112 triple digital input module is one of a range of base units that can be connected easily to other items of equipment that have a simple switch (dry contact) output. The unit also has one relay output and an LED output indication. The unit is designed to be installed in the same enclosure as the unit it is monitoring and can also be housed in an Explosion proof enclosure.

The unit is powered from a nominal 24Vdc power supply.

AMEREX – 30113 Triple digital and one digital output encapsulated

AMEREX Integrated 30113 triple digital inputs module is one of a range of base units that can be connected easily to other items of equipment but is configured as a “stand alone” unit. In practice the 30113 is the 30112 unit housed in an encapsulated enclosure complete with an internal antenna.

AMEREX – 30117 Triple digital input battery powered

AMEREX Integrated 30117 triple digital input module battery powered module is one of a range of base units that can be connected easily to other items of equipment that have a simple switch (dry contact) output. The unit also has one relay output and an LED output indication. The unit is designed to be installed in the same enclosure as the unit it is monitoring and can also be housed in an Explosion proof enclosure.

The unit is powered from an internal battery with a life of up to 24 months, depending on the configuration.

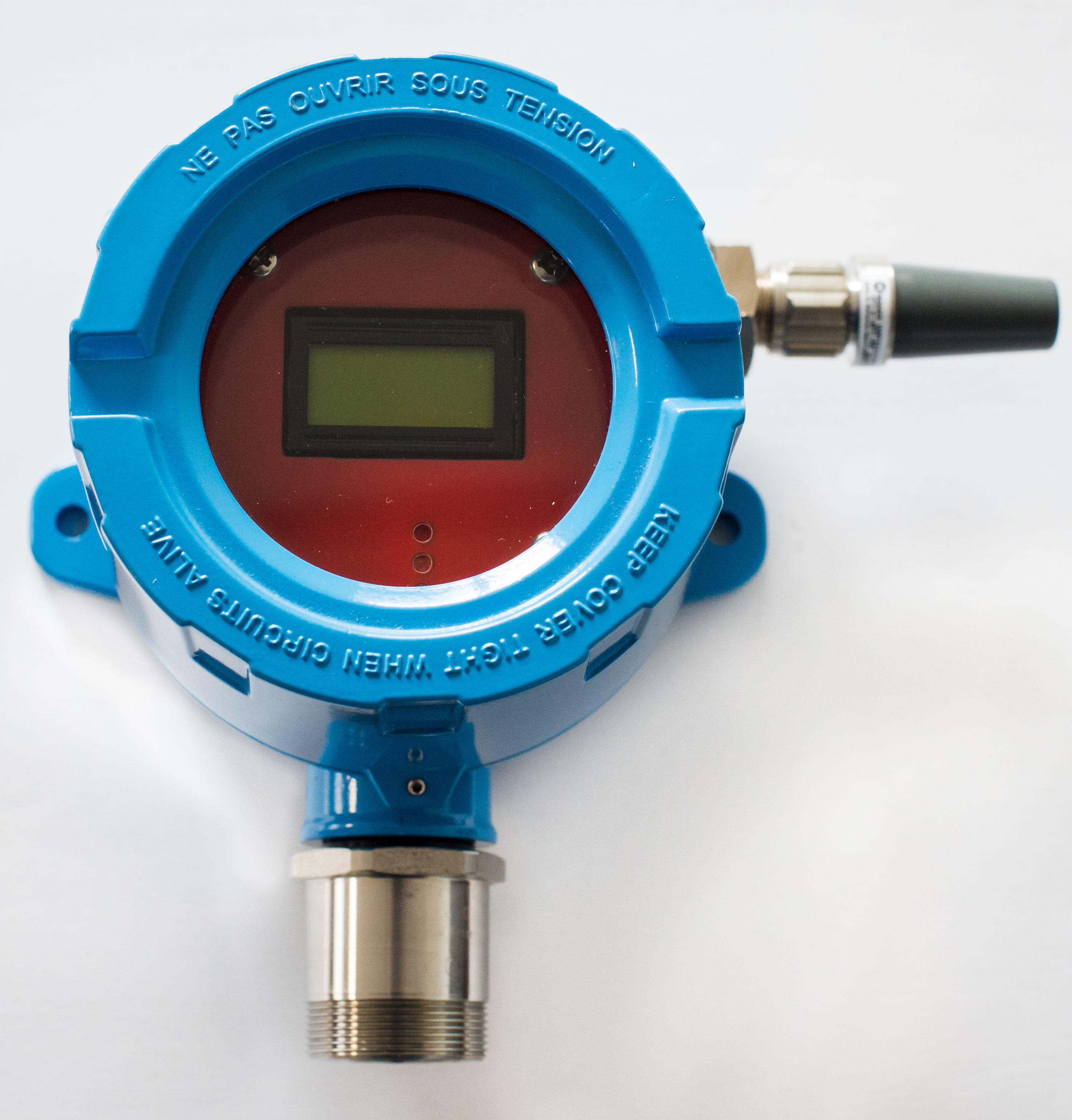

37020 Gas detection transmitter

AMEREX Integrated 37020 Gas transmitter units offers an effective and efficient means of monitoring numerous gases with a variety of sensors. The 37020 has the ability to connect to the AMEREX Integrated SNAP network. The detectors can then be monitored, supplying critical data to the site personnel and/or operators.
